FreeBSD/amd64 (pc3.example.org) (ttyv0) login:
Chapter 3. FreeBSD basics
This chapter covers the basic commands and functionality of the FreeBSD operating system. Much of this material is relevant for any UNIX®-like operating system. New FreeBSD users are encouraged to read through this chapter carefully.
After reading this chapter, you will know:
How to use and configure virtual consoles.
How to create and manage users and groups on FreeBSD.
How UNIX® file permissions and FreeBSD file flags work.
The default FreeBSD file system layout.
The FreeBSD disk organization.
How to mount and unmount file systems.
What processes, daemons, and signals are.
What a shell is, and how to change the default login environment.
How to use basic text editors.
What devices and device nodes are.
How to read manual pages for more information.
3.2. Virtual Consoles and Terminals
Unless FreeBSD has been configured to automatically start a graphical environment during startup, the system will boot into a command line login prompt, as seen in this example:
The first line contains some information about the system. The
amd64 indicates that the system in this example is running a 64-bit version of FreeBSD. The hostname is
pc3.example.org, and ttyv0 indicates that this is the "system console". The second line is the login prompt.
Since FreeBSD is a multiuser system, it needs some way to distinguish between different users. This is accomplished by requiring every user to log into the system before gaining access to the programs on the system. Every user has a unique name "username" and a personal "password".
To log into the system console, type the username that was configured during system installation, as described in Add Users, and press Enter. Then enter the password associated with the username and press Enter. The password is not echoed for security reasons.
Once the correct password is input, the message of the day (MOTD) will be displayed followed by a command prompt. Depending upon the shell that was selected when the user was created, this prompt will be a
% character. The prompt indicates that the user is now logged into the FreeBSD system console and ready to try the available commands.
3.2.1. Virtual Consoles
While the system console can be used to interact with the system, a user working from the command line at the keyboard of a FreeBSD system will typically instead log into a virtual console. This is because system messages are configured by default to display on the system console. These messages will appear over the command or file that the user is working on, making it difficult to concentrate on the work at hand.
By default, FreeBSD is configured to provide several virtual consoles for inputting commands. Each virtual console has its own login prompt and shell and it is easy to switch between virtual consoles. This essentially provides the command line equivalent of having several windows open at the same time in a graphical environment.
The key combinations Alt+F1 through Alt+F8 have been reserved by FreeBSD for switching between virtual consoles. Use Alt+F1 to switch to the system console (ttyv0), Alt+F2 to access the first virtual console (ttyv1), Alt+F3 to access the second virtual console (ttyv2), and so on. When using Xorg as a graphical console, the combination becomes Ctrl+Alt+F1 to return to a text-based virtual console.
When switching from one console to the next, FreeBSD manages the screen output. The result is an illusion of having multiple virtual screens and keyboards that can be used to type commands for FreeBSD to run. The programs that are launched in one virtual console do not stop running when the user switches to a different virtual console.
In FreeBSD, the number of available virtual consoles is configured in this section of /etc/ttys:
# name getty type status comments # ttyv0 "/usr/libexec/getty Pc" xterm on secure # Virtual terminals ttyv1 "/usr/libexec/getty Pc" xterm on secure ttyv2 "/usr/libexec/getty Pc" xterm on secure ttyv3 "/usr/libexec/getty Pc" xterm on secure ttyv4 "/usr/libexec/getty Pc" xterm on secure ttyv5 "/usr/libexec/getty Pc" xterm on secure ttyv6 "/usr/libexec/getty Pc" xterm on secure ttyv7 "/usr/libexec/getty Pc" xterm on secure ttyv8 "/usr/X11R6/bin/xdm -nodaemon" xterm off secure
To disable a virtual console, put a comment symbol (
) at the beginning of the line representing that virtual console. For example, to reduce the number of available virtual consoles from eight to four, put a
in front of the last four lines representing virtual consoles ttyv5 through ttyv8. Do not comment out the line for the system console ttyv0. Note that the last virtual console (ttyv8) is used to access the graphical environment if Xorg has been installed and configured as described in The X Window System.
For a detailed description of every column in this file and the available options for the virtual consoles, refer to ttys(5).
3.2.2. Single User Mode
The FreeBSD boot menu provides an option labelled as "Boot Single User". If this option is selected, the system will boot into a special mode known as "single user mode". This mode is typically used to repair a system that will not boot or to reset the
root password when it is not known. While in single user mode, networking and other virtual consoles are not available. However, full
root access to the system is available, and by default, the
root password is not needed. For these reasons, physical access to the keyboard is needed to boot into this mode and determining who has physical access to the keyboard is something to consider when securing a FreeBSD system.
The settings which control single user mode are found in this section of /etc/ttys:
# name getty type status comments # # If console is marked "insecure", then init will ask for the root password # when going to single-user mode. console none unknown off secure
By default, the status is set to
secure. This assumes that who has physical access to the keyboard is either not important or it is controlled by a physical security policy. If this setting is changed to
insecure, the assumption is that the environment itself is insecure because anyone can access the keyboard. When this line is changed to
insecure, FreeBSD will prompt for the
root password when a user selects to boot into single user mode.
Be careful when changing this setting to
3.2.3. Changing Console Video Modes
The FreeBSD console default video mode may be adjusted to 1024x768, 1280x1024, or any other size supported by the graphics chip and monitor. To use a different video mode load the
# kldload vesa
To determine which video modes are supported by the hardware, use vidcontrol(1). To get a list of supported video modes issue the following:
# vidcontrol -i mode
The output of this command lists the video modes that are supported by the hardware. To select a new video mode, specify the mode using vidcontrol(1) as the
# vidcontrol MODE_279
If the new video mode is acceptable, it can be permanently set on boot by adding it to /etc/rc.conf:
3.3. Users and Basic Account Management
FreeBSD allows multiple users to use the computer at the same time. While only one user can sit in front of the screen and use the keyboard at any one time, any number of users can log in to the system through the network. To use the system, each user should have their own user account.
This chapter describes:
The different types of user accounts on a FreeBSD system.
How to add, remove, and modify user accounts.
How to set limits to control the resources that users and groups are allowed to access.
How to create groups and add users as members of a group.
3.3.1. Account Types
Since all access to the FreeBSD system is achieved using accounts and all processes are run by users, user and account management is important.
There are three main types of accounts: system accounts, user accounts, and the superuser account.
188.8.131.52. System Accounts
System accounts are used to run services such as DNS, mail, and web servers. The reason for this is security; if all services ran as the superuser, they could act without restriction.
Examples of system accounts are
Care must be taken when using the operator group, as unintended superuser-like access privileges may be granted, including but not limited to shutdown, reboot, and access to all items in /dev in the group.
nobody is the generic unprivileged system account. However, the more services that use
nobody, the more files and processes that user will become associated with, and hence the more privileged that user becomes.
184.108.40.206. User Accounts
User accounts are assigned to real people and are used to log in and use the system. Every person accessing the system should have a unique user account. This allows the administrator to find out who is doing what and prevents users from clobbering the settings of other users.
Each user can set up their own environment to accommodate their use of the system, by configuring their default shell, editor, key bindings, and language settings.
Every user account on a FreeBSD system has certain information associated with it:
- User name
The user name is typed at the
login:prompt. Each user must have a unique user name. There are a number of rules for creating valid user names which are documented in passwd(5). It is recommended to use user names that consist of eight or fewer, all lower case characters in order to maintain backwards compatibility with applications.
Each account has an associated password.
- User ID (UID)
The User ID (UID) is a number used to uniquely identify the user to the FreeBSD system. Commands that allow a user name to be specified will first convert it to the UID. It is recommended to use a UID less than 65535, since higher values may cause compatibility issues with some software.
- Group ID (GID)
The Group ID (GID) is a number used to uniquely identify the primary group that the user belongs to. Groups are a mechanism for controlling access to resources based on a user’s GID rather than their UID. This can significantly reduce the size of some configuration files and allows users to be members of more than one group. It is recommended to use a GID of 65535 or lower as higher GIDs may break some software.
- Login class
Login classes are an extension to the group mechanism that provide additional flexibility when tailoring the system to different users. Login classes are discussed further in Configuring Login Classes.
- Password change time
By default, passwords do not expire. However, password expiration can be enabled on a per-user basis, forcing some or all users to change their passwords after a certain amount of time has elapsed.
- Account expiration time
By default, FreeBSD does not expire accounts. When creating accounts that need a limited lifespan, such as student accounts in a school, specify the account expiry date using pw(8). After the expiry time has elapsed, the account cannot be used to log in to the system, although the account’s directories and files will remain.
- User’s full name
The user name uniquely identifies the account to FreeBSD, but does not necessarily reflect the user’s real name. Similar to a comment, this information can contain spaces, uppercase characters, and be more than 8 characters long.
- Home directory
The home directory is the full path to a directory on the system. This is the user’s starting directory when the user logs in. A common convention is to put all user home directories under /home/username or /usr/home/username. Each user stores their personal files and subdirectories in their own home directory.
- User shell
The shell provides the user’s default environment for interacting with the system. There are many different kinds of shells and experienced users will have their own preferences, which can be reflected in their account settings.
220.127.116.11. The Superuser Account
The superuser account, usually called
root, is used to manage the system with no limitations on privileges. For this reason, it should not be used for day-to-day tasks like sending and receiving mail, general exploration of the system, or programming.
The superuser, unlike other user accounts, can operate without limits, and misuse of the superuser account may result in spectacular disasters. User accounts are unable to destroy the operating system by mistake, so it is recommended to login as a user account and to only become the superuser when a command requires extra privilege.
Always double and triple-check any commands issued as the superuser, since an extra space or missing character can mean irreparable data loss.
There are several ways to gain superuser privilege. While one can log in as
root, this is highly discouraged.
Instead, use su(1) to become the superuser. If
- is specified when running this command, the user will also inherit the root user’s environment. The user running this command must be in the
wheel group or else the command will fail. The user must also know the password for the
root user account.
In this example, the user only becomes superuser in order to run
make install as this step requires superuser privilege. Once the command completes, the user types
exit to leave the superuser account and return to the privilege of their user account.
% configure % make % su - Password: # make install # exit %
The built-in su(1) framework works well for single systems or small networks with just one system administrator. An alternative is to install the security/sudo package or port. This software provides activity logging and allows the administrator to configure which users can run which commands as the superuser.
3.3.2. Managing Accounts
FreeBSD provides a variety of different commands to manage user accounts. The most common commands are summarized in Utilities for Managing User Accounts, followed by some examples of their usage. See the manual page for each utility for more details and usage examples.
The recommended command-line application for adding new users.
The recommended command-line application for removing users.
A flexible tool for changing user database information.
The command-line tool to change user passwords.
A powerful and flexible tool for modifying all aspects of user accounts.
The recommended program for adding new users is adduser(8). When a new user is added, this program automatically updates /etc/passwd and /etc/group. It also creates a home directory for the new user, copies in the default configuration files from /usr/share/skel, and can optionally mail the new user a welcome message. This utility must be run as the superuser.
The adduser(8) utility is interactive and walks through the steps for creating a new user account. As seen in Adding a User on FreeBSD, either input the required information or press Return to accept the default value shown in square brackets. In this example, the user has been invited into the
wheel group, allowing them to become the superuser with su(1). When finished, the utility will prompt to either create another user or to exit.
# adduser Username: jru Full name: J. Random User Uid (Leave empty for default): Login group [jru]: Login group is jru. Invite jru into other groups? : wheel Login class [default]: Shell (sh csh tcsh zsh nologin) [sh]: zsh Home directory [/home/jru]: Home directory permissions (Leave empty for default): Use password-based authentication? [yes]: Use an empty password? (yes/no) [no]: Use a random password? (yes/no) [no]: Enter password: Enter password again: Lock out the account after creation? [no]: Username : jru Password : **** Full Name : J. Random User Uid : 1001 Class : Groups : jru wheel Home : /home/jru Shell : /usr/local/bin/zsh Locked : no OK? (yes/no): yes adduser: INFO: Successfully added (jru) to the user database. Add another user? (yes/no): no Goodbye! #
Since the password is not echoed when typed, be careful to not mistype the password when creating the user account.
To completely remove a user from the system, run rmuser(8) as the superuser. This command performs the following steps:
Removes the user’s crontab(1) entry, if one exists.
Removes any at(1) jobs belonging to the user.
Kills all processes owned by the user.
Removes the user from the system’s local password file.
Optionally removes the user’s home directory, if it is owned by the user.
Removes the incoming mail files belonging to the user from /var/mail.
Removes all files owned by the user from temporary file storage areas such as /tmp.
Finally, removes the username from all groups to which it belongs in /etc/group. If a group becomes empty and the group name is the same as the username, the group is removed. This complements the per-user unique groups created by adduser(8).
rmuser(8) cannot be used to remove superuser accounts since that is almost always an indication of massive destruction.
By default, an interactive mode is used, as shown in the following example.
rmuserInteractive Account Removal
# rmuser jru Matching password entry: jru:*:1001:1001::0:0:J. Random User:/home/jru:/usr/local/bin/zsh Is this the entry you wish to remove? y Remove user's home directory (/home/jru)? y Removing user (jru): mailspool home passwd. #
Any user can use chpass(1) to change their default shell and personal information associated with their user account. The superuser can use this utility to change additional account information for any user.
When passed no options, aside from an optional username, chpass(1) displays an editor containing user information. When the user exits from the editor, the user database is updated with the new information.
This utility will prompt for the user’s password when exiting the editor, unless the utility is run as the superuser.
chpass as Superuser, the superuser has typed
chpass jru and is now viewing the fields that can be changed for this user. If
jru runs this command instead, only the last six fields will be displayed and available for editing. This is shown in Using
chpass as Regular User.
#Changing user database information for jru. Login: jru Password: * Uid [#]: 1001 Gid [# or name]: 1001 Change [month day year]: Expire [month day year]: Class: Home directory: /home/jru Shell: /usr/local/bin/zsh Full Name: J. Random User Office Location: Office Phone: Home Phone: Other information:
chpassas Regular User
#Changing user database information for jru. Shell: /usr/local/bin/zsh Full Name: J. Random User Office Location: Office Phone: Home Phone: Other information:
Any user can easily change their password using passwd(1). To prevent accidental or unauthorized changes, this command will prompt for the user’s original password before a new password can be set:
% passwd Changing local password for jru. Old password: New password: Retype new password: passwd: updating the database... passwd: done
The superuser can change any user’s password by specifying the username when running passwd(1). When this utility is run as the superuser, it will not prompt for the user’s current password. This allows the password to be changed when a user cannot remember the original password.
# passwd jru Changing local password for jru. New password: Retype new password: passwd: updating the database... passwd: done
The pw(8) utility can create, remove, modify, and display users and groups. It functions as a front end to the system user and group files. pw(8) has a very powerful set of command line options that make it suitable for use in shell scripts, but new users may find it more complicated than the other commands presented in this section.
3.3.3. Managing Groups
A group is a list of users. A group is identified by its group name and GID. In FreeBSD, the kernel uses the UID of a process, and the list of groups it belongs to, to determine what the process is allowed to do. Most of the time, the GID of a user or process usually means the first group in the list.
The group name to GID mapping is listed in /etc/group. This is a plain text file with four colon-delimited fields. The first field is the group name, the second is the encrypted password, the third the GID, and the fourth the comma-delimited list of members. For a more complete description of the syntax, refer to group(5).
The superuser can modify /etc/group using a text editor. Alternatively, pw(8) can be used to add and edit groups. For example, to add a group called
teamtwo and then confirm that it exists:
# pw groupadd teamtwo # pw groupshow teamtwo teamtwo:*:1100:
In this example,
1100 is the GID of
teamtwo. Right now,
teamtwo has no members. This command will add
jru as a member of
# pw groupmod teamtwo -M jru # pw groupshow teamtwo teamtwo:*:1100:jru
The argument to
-M is a comma-delimited list of users to be added to a new (empty) group or to replace the members of an existing group. To the user, this group membership is different from (and in addition to) the user’s primary group listed in the password file. This means that the user will not show up as a member when using
groupshow with pw(8), but will show up when the information is queried via id(1) or a similar tool. When pw(8) is used to add a user to a group, it only manipulates /etc/group and does not attempt to read additional data from /etc/passwd.
# pw groupmod teamtwo -m db # pw groupshow teamtwo teamtwo:*:1100:jru,db
In this example, the argument to
-m is a comma-delimited list of users who are to be added to the group. Unlike the previous example, these users are appended to the group and do not replace existing users in the group.
% id jru uid=1001(jru) gid=1001(jru) groups=1001(jru), 1100(teamtwo)
In this example,
jru is a member of the groups
In FreeBSD, every file and directory has an associated set of permissions and several utilities are available for viewing and modifying these permissions. Understanding how permissions work is necessary to make sure that users are able to access the files that they need and are unable to improperly access the files used by the operating system or owned by other users.
This section discusses the traditional UNIX® permissions used in FreeBSD. For finer grained file system access control, refer to “Access Control Lists”.
In UNIX®, basic permissions are assigned using three types of access: read, write, and execute. These access types are used to determine file access to the file’s owner, group, and others (everyone else). The read, write, and execute permissions can be represented as the letters
x. They can also be represented as binary numbers as each permission is either on or off (
0). When represented as a number, the order is always read as
r has an on value of
w has an on value of
x has an on value of
Table 4.1 summarizes the possible numeric and alphabetic possibilities. When reading the "Directory Listing" column, a
- is used to represent a permission that is set to off.
No read, no write, no execute
No read, no write, execute
No read, write, no execute
No read, write, execute
Read, no write, no execute
Read, no write, execute
Read, write, no execute
Read, write, execute
-l argument to ls(1) to view a long directory listing that includes a column of information about a file’s permissions for the owner, group, and everyone else. For example, an
ls -l in an arbitrary directory may show:
% ls -l total 530 -rw-r--r-- 1 root wheel 512 Sep 5 12:31 myfile -rw-r--r-- 1 root wheel 512 Sep 5 12:31 otherfile -rw-r--r-- 1 root wheel 7680 Sep 5 12:31 email.txt
The first (leftmost) character in the first column indicates whether this file is a regular file, a directory, a special character device, a socket, or any other special pseudo-file device. In this example, the
- indicates a regular file. The next three characters,
rw- in this example, give the permissions for the owner of the file. The next three characters,
r--, give the permissions for the group that the file belongs to. The final three characters,
r--, give the permissions for the rest of the world. A dash means that the permission is turned off. In this example, the permissions are set so the owner can read and write to the file, the group can read the file, and the rest of the world can only read the file. According to the table above, the permissions for this file would be
644, where each digit represents the three parts of the file’s permission.
How does the system control permissions on devices? FreeBSD treats most hardware devices as a file that programs can open, read, and write data to. These special device files are stored in /dev/.
Directories are also treated as files. They have read, write, and execute permissions. The executable bit for a directory has a slightly different meaning than that of files. When a directory is marked executable, it means it is possible to change into that directory using cd(1). This also means that it is possible to access the files within that directory, subject to the permissions on the files themselves.
In order to perform a directory listing, the read permission must be set on the directory. In order to delete a file that one knows the name of, it is necessary to have write and execute permissions to the directory containing the file.
There are more permission bits, but they are primarily used in special circumstances such as setuid binaries and sticky directories. For more information on file permissions and how to set them, refer to chmod(1).
3.4.1. Symbolic Permissions
Symbolic permissions use characters instead of octal values to assign permissions to files or directories. Symbolic permissions use the syntax of (who) (action) (permissions), where the following values are available:
Explicitly set permissions
Set UID or GID
These values are used with chmod(1), but with letters instead of numbers. For example, the following command would block other users from accessing FILE:
% chmod go= FILE
A comma separated list can be provided when more than one set of changes to a file must be made. For example, the following command removes the group and "world" write permission on FILE, and adds the execute permissions for everyone:
% chmod go-w,a+x FILE
3.4.2. FreeBSD File Flags
In addition to file permissions, FreeBSD supports the use of "file flags". These flags add an additional level of security and control over files, but not directories. With file flags, even
root can be prevented from removing or altering files.
File flags are modified using chflags(1). For example, to enable the system undeletable flag on the file file1, issue the following command:
# chflags sunlink file1
To disable the system undeletable flag, put a "no" in front of the
# chflags nosunlink file1
To view the flags of a file, use
-lo with ls(1):
# ls -lo file1
-rw-r--r-- 1 trhodes trhodes sunlnk 0 Mar 1 05:54 file1
Other than the permissions already discussed, there are three other specific settings that all administrators should know about. They are the
These settings are important for some UNIX® operations as they provide functionality not normally granted to normal users. To understand them, the difference between the real user ID and effective user ID must be noted.
The real user ID is the UID who owns or starts the process. The effective UID is the user ID the process runs as. As an example, passwd(1) runs with the real user ID when a user changes their password. However, in order to update the password database, the command runs as the effective ID of the
root user. This allows users to change their passwords without seeing a
Permission Denied error.
The setuid permission may be set by prefixing a permission set with the number four (4) as shown in the following example:
# chmod 4755 suidexample.sh
The permissions on suidexample.sh now look like the following:
-rwsr-xr-x 1 trhodes trhodes 63 Aug 29 06:36 suidexample.sh
Note that a
s is now part of the permission set designated for the file owner, replacing the executable bit. This allows utilities which need elevated permissions, such as passwd(1).
To view this in real time, open two terminals. On one, type
passwd as a normal user. While it waits for a new password, check the process table and look at the user information for passwd(1):
In terminal A:
Changing local password for trhodes Old Password:
In terminal B:
# ps aux | grep passwd
trhodes 5232 0.0 0.2 3420 1608 0 R+ 2:10AM 0:00.00 grep passwd root 5211 0.0 0.2 3620 1724 2 I+ 2:09AM 0:00.01 passwd
Although passwd(1) is run as a normal user, it is using the effective UID of
setgid permission performs the same function as the
setuid permission; except that it alters the group settings. When an application or utility executes with this setting, it will be granted the permissions based on the group that owns the file, not the user who started the process.
To set the
setgid permission on a file, provide chmod(1) with a leading two (2):
# chmod 2755 sgidexample.sh
In the following listing, notice that the
s is now in the field designated for the group permission settings:
-rwxr-sr-x 1 trhodes trhodes 44 Aug 31 01:49 sgidexample.sh
In these examples, even though the shell script in question is an executable file, it will not run with a different EUID or effective user ID. This is because shell scripts may not access the setuid(2) system calls.
setgid permission bits may lower system security, by allowing for elevated permissions. The third special permission, the
sticky bit, can strengthen the security of a system.
sticky bit is set on a directory, it allows file deletion only by the file owner. This is useful to prevent file deletion in public directories, such as /tmp, by users who do not own the file. To utilize this permission, prefix the permission set with a one (1):
# chmod 1777 /tmp
sticky bit permission will display as a
t at the very end of the permission set:
# ls -al / | grep tmp
drwxrwxrwt 10 root wheel 512 Aug 31 01:49 tmp
3.5. Directory Structure
The FreeBSD directory hierarchy is fundamental to obtaining an overall understanding of the system. The most important directory is root or, "/". This directory is the first one mounted at boot time and it contains the base system necessary to prepare the operating system for multi-user operation. The root directory also contains mount points for other file systems that are mounted during the transition to multi-user operation.
A mount point is a directory where additional file systems can be grafted onto a parent file system (usually the root file system). This is further described in Disk Organization. Standard mount points include /usr/, /var/, /tmp/, /mnt/, and /cdrom/. These directories are usually referenced to entries in /etc/fstab. This file is a table of various file systems and mount points and is read by the system. Most of the file systems in /etc/fstab are mounted automatically at boot time from the script rc(8) unless their entry includes
noauto. Details can be found in The fstab File.
A complete description of the file system hierarchy is available in hier(7). The following table provides a brief overview of the most common directories.
Root directory of the file system.
User utilities fundamental to both single-user and multi-user environments.
Programs and configuration files used during operating system bootstrap.
Default boot configuration files. Refer to loader.conf(5) for details.
Device nodes. Refer to intro(4) for details.
System configuration files and scripts.
Default system configuration files. Refer to rc(8) for details.
Configuration files for mail transport agents such as sendmail(8).
ppp(8) configuration files.
Empty directory commonly used by system administrators as a temporary mount point.
Statically linked programs for emergency recovery as described in rescue(8).
Home directory for the
System programs and administration utilities fundamental to both single-user and multi-user environments.
Temporary files which are usually not preserved across a system reboot. A memory-based file system is often mounted at /tmp. This can be automated using the tmpmfs-related variables of rc.conf(5) or with an entry in /etc/fstab; refer to mdmfs(8) for details.
The majority of user utilities and applications.
Common utilities, programming tools, and applications.
Standard C include files.
Miscellaneous utility data files.
System daemons and system utilities executed by other programs.
Local executables and libraries. Also used as the default destination for the FreeBSD ports framework. Within /usr/local, the general layout sketched out by hier(7) for /usr should be used. Exceptions are the man directory, which is directly under /usr/local rather than under /usr/local/share, and the ports documentation is in share/doc/port.
Architecture-specific target tree produced by building the /usr/src tree.
The FreeBSD Ports Collection (optional).
System daemons and system utilities executed by users.
BSD and/or local source files.
Multi-purpose log, temporary, transient, and spool files. A memory-based file system is sometimes mounted at /var. This can be automated using the varmfs-related variables in rc.conf(5) or with an entry in /etc/fstab; refer to mdmfs(8) for details.
Miscellaneous system log files.
User mailbox files.
Miscellaneous printer and mail system spooling directories.
Temporary files which are usually preserved across a system reboot, unless /var is a memory-based file system.
3.6. Disk Organization
The smallest unit of organization that FreeBSD uses to find files is the filename. Filenames are case-sensitive, which means that readme.txt and README.TXT are two separate files. FreeBSD does not use the extension of a file to determine whether the file is a program, document, or some other form of data.
Files are stored in directories. A directory may contain no files, or it may contain many hundreds of files. A directory can also contain other directories, allowing a hierarchy of directories within one another in order to organize data.
Files and directories are referenced by giving the file or directory name, followed by a forward slash,
/, followed by any other directory names that are necessary. For example, if the directory foo contains a directory bar which contains the file readme.txt, the full name, or path, to the file is foo/bar/readme.txt. Note that this is different from Windows® which uses
\ to separate file and directory names. FreeBSD does not use drive letters, or other drive names in the path. For example, one would not type c:\foo\bar\readme.txt on FreeBSD.
Directories and files are stored in a file system. Each file system contains exactly one directory at the very top level, called the root directory for that file system. This root directory can contain other directories. One file system is designated the root file system or
/. Every other file system is mounted under the root file system. No matter how many disks are on the FreeBSD system, every directory appears to be part of the same disk.
Consider three file systems, called
C. Each file system has one root directory, which contains two other directories, called
A2 (and likewise
A the root file system. If ls(1) is used to view the contents of this directory, it will show two subdirectories,
A2. The directory tree looks like this:
A file system must be mounted on to a directory in another file system. When mounting file system
B on to the directory
A1, the root directory of
A1, and the directories in
B appear accordingly:
Any files that are in the
B2 directories can be reached with the path /A1/B1 or /A1/B2 as necessary. Any files that were in /A1 have been temporarily hidden. They will reappear if
B is unmounted from
B had been mounted on
A2 then the diagram would look like this:
and the paths would be /A2/B1 and /A2/B2 respectively.

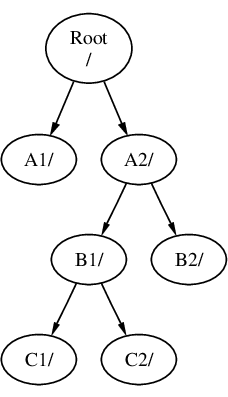

File systems can be mounted on top of one another. Continuing the last example, the
C file system could be mounted on top of the
B1 directory in the
B file system, leading to this arrangement:

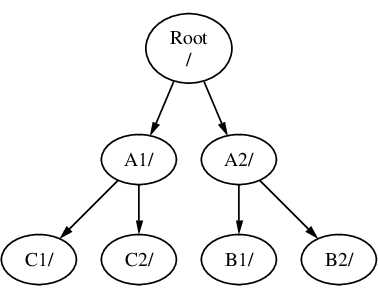

C could be mounted directly on to the
A file system, under the
It is entirely possible to have one large root file system, and not need to create any others. There are some drawbacks to this approach, and one advantage.
Different file systems can have different mount options. For example, the root file system can be mounted read-only, making it impossible for users to inadvertently delete or edit a critical file. Separating user-writable file systems, such as /home, from other file systems allows them to be mounted nosuid. This option prevents the suid/guid bits on executables stored on the file system from taking effect, possibly improving security.
FreeBSD automatically optimizes the layout of files on a file system, depending on how the file system is being used. So a file system that contains many small files that are written frequently will have a different optimization to one that contains fewer, larger files. By having one big file system this optimization breaks down.
FreeBSD’s file systems are robust if power is lost. However, a power loss at a critical point could still damage the structure of the file system. By splitting data over multiple file systems it is more likely that the system will still come up, making it easier to restore from backup as necessary.
File systems are a fixed size. If you create a file system when you install FreeBSD and give it a specific size, you may later discover that you need to make the partition bigger. This is not easily accomplished without backing up, recreating the file system with the new size, and then restoring the backed up data.
FreeBSD features the growfs(8) command, which makes it possible to increase the size of file system on the fly, removing this limitation.
File systems are contained in partitions. This does not have the same meaning as the common usage of the term partition (for example, MS-DOS® partition), because of FreeBSD’s UNIX® heritage. Each partition is identified by a letter from
a through to
h. Each partition can contain only one file system, which means that file systems are often described by either their typical mount point in the file system hierarchy, or the letter of the partition they are contained in.
FreeBSD also uses disk space for swap space to provide virtual memory. This allows your computer to behave as though it has much more memory than it actually does. When FreeBSD runs out of memory, it moves some of the data that is not currently being used to the swap space, and moves it back in (moving something else out) when it needs it.
Some partitions have certain conventions associated with them.
Normally contains the root file system.
Normally contains swap space.
Normally the same size as the enclosing slice. This allows utilities that need to work on the entire slice, such as a bad block scanner, to work on the
Disks in FreeBSD are divided into slices, referred to in Windows® as partitions, which are numbered from 1 to 4. These are then divided into partitions, which contain file systems, and are labeled using letters.
Slice numbers follow the device name, prefixed with an
s, starting at 1. So "da0s1" is the first slice on the first SCSI drive. There can only be four physical slices on a disk, but there can be logical slices inside physical slices of the appropriate type. These extended slices are numbered starting at 5, so "ada0s5" is the first extended slice on the first SATA disk. These devices are used by file systems that expect to occupy a slice.
Slices, "dangerously dedicated" physical drives, and other drives contain partitions, which are represented as letters from
h. This letter is appended to the device name, so "da0a" is the
a partition on the first
da drive, which is "dangerously dedicated". "ada1s3e" is the fifth partition in the third slice of the second SATA disk drive.
Finally, each disk on the system is identified. A disk name starts with a code that indicates the type of disk, and then a number, indicating which disk it is. Unlike slices, disk numbering starts at 0. Common codes are listed in Disk Device Names.
When referring to a partition, include the disk name,
s, the slice number, and then the partition letter. Examples are shown in Sample Disk, Slice, and Partition Names.

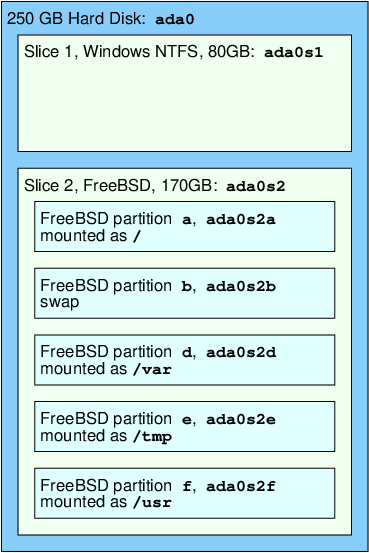

Conceptual Model of a Disk shows a conceptual model of a disk layout.
When installing FreeBSD, configure the disk slices, create partitions within the slice to be used for FreeBSD, create a file system or swap space in each partition, and decide where each file system will be mounted.
|Drive Type||Drive Device Name|
SATA and IDE hard drives
SCSI hard drives and USB storage devices
SATA and IDECD-ROM drives
Assorted non-standard CD-ROM drives
SCSI tape drives
IDE tape drives
The first partition (
The fifth partition (
This diagram shows FreeBSD’s view of the first SATA disk attached to the system. Assume that the disk is 250 GB in size, and contains an 80 GB slice and a 170 GB slice (MS-DOS® partitions). The first slice contains a Windows® NTFS file system, C:, and the second slice contains a FreeBSD installation. This example FreeBSD installation has four data partitions and a swap partition.
The four partitions each hold a file system. Partition
a is used for the root file system,
d for /var/,
e for /tmp/, and
f for /usr/. Partition letter
c refers to the entire slice, and so is not used for ordinary partitions.
3.7. Mounting and Unmounting File Systems
The file system is best visualized as a tree, rooted, as it were, at /. /dev, /usr, and the other directories in the root directory are branches, which may have their own branches, such as /usr/local, and so on.
There are various reasons to house some of these directories on separate file systems. /var contains the directories log/, spool/, and various types of temporary files, and as such, may get filled up. Filling up the root file system is not a good idea, so splitting /var from / is often favorable.
Another common reason to contain certain directory trees on other file systems is if they are to be housed on separate physical disks, or are separate virtual disks, such as Network File System mounts, described in “Network File System (NFS)”, or CDROM drives.
3.7.1. The fstab File
During the boot process (The FreeBSD Booting Process), file systems listed in /etc/fstab are automatically mounted except for the entries containing
noauto. This file contains entries in the following format:
device /mount-point fstype options dumpfreq passno
An existing device name as explained in Disk Device Names.
An existing directory on which to mount the file system.
The file system type to pass to mount(8). The default FreeBSD file system is
rwfor read-write file systems, or
rofor read-only file systems, followed by any other options that may be needed. A common option is
noautofor file systems not normally mounted during the boot sequence. Other options are listed in mount(8).
Used by dump(8) to determine which file systems require dumping. If the field is missing, a value of zero is assumed.
Determines the order in which file systems should be checked. File systems that should be skipped should have their
passnoset to zero. The root file system needs to be checked before everything else and should have its
passnoset to one. The other file systems should be set to values greater than one. If more than one file system has the same
passno, fsck(8) will attempt to check file systems in parallel if possible.
Refer to fstab(5) for more information on the format of /etc/fstab and its options.
3.7.2. Using mount(8)
File systems are mounted using mount(8). The most basic syntax is as follows:
# mount device mountpoint
This command provides many options which are described in mount(8), The most commonly used options include:
Mount all the file systems listed in /etc/fstab, except those marked as "noauto", excluded by the
-tflag, or those that are already mounted.
Do everything except for the actual mount system call. This option is useful in conjunction with the
-vflag to determine what mount(8) is actually trying to do.
Force the mount of an unclean file system (dangerous), or the revocation of write access when downgrading a file system’s mount status from read-write to read-only.
Mount the file system read-only. This is identical to using
Mount the specified file system type or mount only file systems of the given type, if
-ais included. "ufs" is the default file system type.
Update mount options on the file system.
Mount the file system read-write.
The following options can be passed to
-o as a comma-separated list:
Do not interpret setuid or setgid flags on the file system. This is also a useful security option.
3.7.3. Using umount(8)
To unmount a file system use umount(8). This command takes one parameter which can be a mountpoint, device name,
All forms take
-f to force unmounting, and
-v for verbosity. Be warned that
-f is not generally a good idea as it might crash the computer or damage data on the file system.
To unmount all mounted file systems, or just the file system types listed after
-A. Note that
-A does not attempt to unmount the root file system.
3.8. Processes and Daemons
FreeBSD is a multi-tasking operating system. Each program running at any one time is called a process. Every running command starts at least one new process and there are a number of system processes that are run by FreeBSD.
Each process is uniquely identified by a number called a process ID (PID). Similar to files, each process has one owner and group, and the owner and group permissions are used to determine which files and devices the process can open. Most processes also have a parent process that started them. For example, the shell is a process, and any command started in the shell is a process which has the shell as its parent process. The exception is a special process called init(8) which is always the first process to start at boot time and which always has a PID of
Some programs are not designed to be run with continuous user input and disconnect from the terminal at the first opportunity. For example, a web server responds to web requests, rather than user input. Mail servers are another example of this type of application. These types of programs are known as daemons. The term daemon comes from Greek mythology and represents an entity that is neither good nor evil, and which invisibly performs useful tasks. This is why the BSD mascot is the cheerful-looking daemon with sneakers and a pitchfork.
There is a convention to name programs that normally run as daemons with a trailing "d". For example, BIND is the Berkeley Internet Name Domain, but the actual program that executes is
named. The Apache web server program is
httpd and the line printer spooling daemon is
lpd. This is only a naming convention. For example, the main mail daemon for the Sendmail application is
sendmail, and not
3.8.1. Viewing Processes
To see the processes running on the system, use ps(1) or top(1). To display a static list of the currently running processes, their PIDs, how much memory they are using, and the command they were started with, use ps(1). To display all the running processes and update the display every few seconds in order to interactively see what the computer is doing, use top(1).
By default, ps(1) only shows the commands that are running and owned by the user. For example:
% ps PID TT STAT TIME COMMAND 8203 0 Ss 0:00.59 /bin/csh 8895 0 R+ 0:00.00 ps
The output from ps(1) is organized into a number of columns. The
PID column displays the process ID. PIDs are assigned starting at 1, go up to 99999, then wrap around back to the beginning. However, a PID is not reassigned if it is already in use. The
TT column shows the tty the program is running on and
STAT shows the program’s state.
TIME is the amount of time the program has been running on the CPU. This is usually not the elapsed time since the program was started, as most programs spend a lot of time waiting for things to happen before they need to spend time on the CPU. Finally,
COMMAND is the command that was used to start the program.
A number of different options are available to change the information that is displayed. One of the most useful sets is
a displays information about all the running processes of all users,
u displays the username and memory usage of the process' owner,
x displays information about daemon processes, and
ww causes ps(1) to display the full command line for each process, rather than truncating it once it gets too long to fit on the screen.
The output from top(1) is similar:
% top last pid: 9609; load averages: 0.56, 0.45, 0.36 up 0+00:20:03 10:21:46 107 processes: 2 running, 104 sleeping, 1 zombie CPU: 6.2% user, 0.1% nice, 8.2% system, 0.4% interrupt, 85.1% idle Mem: 541M Active, 450M Inact, 1333M Wired, 4064K Cache, 1498M Free ARC: 992M Total, 377M MFU, 589M MRU, 250K Anon, 5280K Header, 21M Other Swap: 2048M Total, 2048M Free PID USERNAME THR PRI NICE SIZE RES STATE C TIME WCPU COMMAND 557 root 1 -21 r31 136M 42296K select 0 2:20 9.96% Xorg 8198 dru 2 52 0 449M 82736K select 3 0:08 5.96% kdeinit4 8311 dru 27 30 0 1150M 187M uwait 1 1:37 0.98% firefox 431 root 1 20 0 14268K 1728K select 0 0:06 0.98% moused 9551 dru 1 21 0 16600K 2660K CPU3 3 0:01 0.98% top 2357 dru 4 37 0 718M 141M select 0 0:21 0.00% kdeinit4 8705 dru 4 35 0 480M 98M select 2 0:20 0.00% kdeinit4 8076 dru 6 20 0 552M 113M uwait 0 0:12 0.00% soffice.bin 2623 root 1 30 10 12088K 1636K select 3 0:09 0.00% powerd 2338 dru 1 20 0 440M 84532K select 1 0:06 0.00% kwin 1427 dru 5 22 0 605M 86412K select 1 0:05 0.00% kdeinit4
The output is split into two sections. The header (the first five or six lines) shows the PID of the last process to run, the system load averages (which are a measure of how busy the system is), the system uptime (time since the last reboot) and the current time. The other figures in the header relate to how many processes are running, how much memory and swap space has been used, and how much time the system is spending in different CPU states. If the ZFS file system module has been loaded, an
ARC line indicates how much data was read from the memory cache instead of from disk.
Below the header is a series of columns containing similar information to the output from ps(1), such as the PID, username, amount of CPU time, and the command that started the process. By default, top(1) also displays the amount of memory space taken by the process. This is split into two columns: one for total size and one for resident size. Total size is how much memory the application has needed and the resident size is how much it is actually using now.
top(1) automatically updates the display every two seconds. A different interval can be specified with
3.8.2. Killing Processes
One way to communicate with any running process or daemon is to send a signal using kill(1). There are a number of different signals; some have a specific meaning while others are described in the application’s documentation. A user can only send a signal to a process they own and sending a signal to someone else’s process will result in a permission denied error. The exception is the
root user, who can send signals to anyone’s processes.
The operating system can also send a signal to a process. If an application is badly written and tries to access memory that it is not supposed to, FreeBSD will send the process the "Segmentation Violation" signal (
SIGSEGV). If an application has been written to use the alarm(3) system call to be alerted after a period of time has elapsed, it will be sent the "Alarm" signal (
Two signals can be used to stop a process:
SIGTERM is the polite way to kill a process as the process can read the signal, close any log files it may have open, and attempt to finish what it is doing before shutting down. In some cases, a process may ignore
SIGTERM if it is in the middle of some task that cannot be interrupted.
SIGKILL cannot be ignored by a process. Sending a
SIGKILL to a process will usually stop that process there and then. .
Other commonly used signals are
SIGUSR2. Since these are general purpose signals, different applications will respond differently.
For example, after changing a web server’s configuration file, the web server needs to be told to re-read its configuration. Restarting
httpd would result in a brief outage period on the web server. Instead, send the daemon the
SIGHUP signal. Be aware that different daemons will have different behavior, so refer to the documentation for the daemon to determine if
SIGHUP will achieve the desired results.
When sending other signals, substitute
KILL with the name of the signal.
A shell provides a command line interface for interacting with the operating system. A shell receives commands from the input channel and executes them. Many shells provide built in functions to help with everyday tasks such as file management, file globbing, command line editing, command macros, and environment variables. FreeBSD comes with several shells, including the Bourne shell (sh(1)) and the extended C shell (tcsh(1)). Other shells are available from the FreeBSD Ports Collection, such as
The shell that is used is really a matter of taste. A C programmer might feel more comfortable with a C-like shell such as tcsh(1). A Linux® user might prefer
bash. Each shell has unique properties that may or may not work with a user’s preferred working environment, which is why there is a choice of which shell to use.
One common shell feature is filename completion. After a user types the first few letters of a command or filename and presses Tab, the shell completes the rest of the command or filename. Consider two files called foobar and football. To delete foobar, the user might type
rm foo and press Tab to complete the filename.
But the shell only shows
rm foo. It was unable to complete the filename because both foobar and football start with
foo. Some shells sound a beep or show all the choices if more than one name matches. The user must then type more characters to identify the desired filename. Typing a
t and pressing Tab again is enough to let the shell determine which filename is desired and fill in the rest.
Another feature of the shell is the use of environment variables. Environment variables are a variable/key pair stored in the shell’s environment. This environment can be read by any program invoked by the shell, and thus contains a lot of program configuration. Common Environment Variables provides a list of common environment variables and their meanings. Note that the names of environment variables are always in uppercase.
Current logged in user’s name.
Colon-separated list of directories to search for binaries.
Network name of the Xorg display to connect to, if available.
The current shell.
The name of the user’s type of terminal. Used to determine the capabilities of the terminal.
Database entry of the terminal escape codes to perform various terminal functions.
Type of operating system.
The system’s CPU architecture.
The user’s preferred text editor.
The user’s preferred utility for viewing text one page at a time.
Colon-separated list of directories to search for manual pages.
How to set an environment variable differs between shells. In tcsh(1) and csh(1), use
setenv to set environment variables. In sh(1) and
export to set the current environment variables. This example sets the default
EDITOR to /usr/local/bin/emacs for the tcsh(1) shell:
% setenv EDITOR /usr/local/bin/emacs
The equivalent command for
bash would be:
% export EDITOR="/usr/local/bin/emacs"
To expand an environment variable in order to see its current setting, type a
$ character in front of its name on the command line. For example,
echo $TERM displays the current
Shells treat special characters, known as meta-characters, as special representations of data. The most common meta-character is
*, which represents any number of characters in a filename. Meta-characters can be used to perform filename globbing. For example,
echo * is equivalent to
ls because the shell takes all the files that match
echo lists them on the command line.
To prevent the shell from interpreting a special character, escape it from the shell by starting it with a backslash (
\). For example,
echo $TERM prints the terminal setting whereas
echo \$TERM literally prints the string
3.9.1. Changing the Shell
The easiest way to permanently change the default shell is to use
chsh. Running this command will open the editor that is configured in the
EDITOR environment variable, which by default is set to vi(1). Change the
Shell: line to the full path of the new shell.
chsh -s which will set the specified shell without opening an editor. For example, to change the shell to
% chsh -s /usr/local/bin/bash
The new shell must be present in /etc/shells. If the shell was installed from the FreeBSD Ports Collection as described in Installing Applications: Packages and Ports, it should be automatically added to this file. If it is missing, add it using this command, replacing the path with the path of the shell:
Then, rerun chsh(1).
3.9.2. Advanced Shell Techniques
The UNIX® shell is not just a command interpreter, it acts as a powerful tool which allows users to execute commands, redirect their output, redirect their input and chain commands together to improve the final command output. When this functionality is mixed with built in commands, the user is provided with an environment that can maximize efficiency.
Shell redirection is the action of sending the output or the input of a command into another command or into a file. To capture the output of the ls(1) command, for example, into a file, redirect the output:
% ls > directory_listing.txt
The directory contents will now be listed in directory_listing.txt. Some commands can be used to read input, such as sort(1). To sort this listing, redirect the input:
% sort < directory_listing.txt
The input will be sorted and placed on the screen. To redirect that input into another file, one could redirect the output of sort(1) by mixing the direction:
% sort < directory_listing.txt > sorted.txt
In all of the previous examples, the commands are performing redirection using file descriptors. Every UNIX® system has file descriptors, which include standard input (stdin), standard output (stdout), and standard error (stderr). Each one has a purpose, where input could be a keyboard or a mouse, something that provides input. Output could be a screen or paper in a printer. And error would be anything that is used for diagnostic or error messages. All three are considered I/O based file descriptors and sometimes considered streams.
Through the use of these descriptors, the shell allows output and input to be passed around through various commands and redirected to or from a file. Another method of redirection is the pipe operator.
The UNIX® pipe operator, "|" allows the output of one command to be directly passed or directed to another program. Basically, a pipe allows the standard output of a command to be passed as standard input to another command, for example:
% cat directory_listing.txt | sort | less
In that example, the contents of directory_listing.txt will be sorted and the output passed to less(1). This allows the user to scroll through the output at their own pace and prevent it from scrolling off the screen.
3.10. Text Editors
Most FreeBSD configuration is done by editing text files, so it is a good idea to become familiar with a text editor. FreeBSD comes with a few as part of the base system, and many more are available in the Ports Collection.
A simple editor to learn is ee(1), which stands for easy editor. To start this editor, type
ee filename where filename is the name of the file to be edited. Once inside the editor, all of the commands for manipulating the editor’s functions are listed at the top of the display. The caret (
^) represents Ctrl, so
^e expands to Ctrl+e. To leave ee(1), press Esc, then choose the "leave editor" option from the main menu. The editor will prompt to save any changes if the file has been modified.
FreeBSD also comes with more powerful text editors, such as vi(1), as part of the base system. Other editors, like editors/emacs and editors/vim, are part of the FreeBSD Ports Collection. These editors offer more functionality at the expense of being more complicated to learn. Learning a more powerful editor such as vim or Emacs can save more time in the long run.
Many applications which modify files or require typed input will automatically open a text editor. To change the default editor, set the
EDITOR environment variable as described in Shells.
3.11. Devices and Device Nodes
A device is a term used mostly for hardware-related activities in a system, including disks, printers, graphics cards, and keyboards. When FreeBSD boots, the majority of the boot messages refer to devices being detected. A copy of the boot messages are saved to /var/run/dmesg.boot.
Each device has a device name and number. For example, ada0 is the first SATA hard drive, while kbd0 represents the keyboard.
Most devices in FreeBSD must be accessed through special files called device nodes, which are located in /dev.
3.12. Manual Pages
The most comprehensive documentation on FreeBSD is in the form of manual pages. Nearly every program on the system comes with a short reference manual explaining the basic operation and available arguments. These manuals can be viewed using
% man command
where command is the name of the command to learn about. For example, to learn more about ls(1), type:
% man ls
Manual pages are divided into sections which represent the type of topic. In FreeBSD, the following sections are available:
System calls and error numbers.
Functions in the C libraries.
Games and other diversions.
System maintenance and operation commands.
System kernel interfaces.
In some cases, the same topic may appear in more than one section of the online manual. For example, there is a
chmod user command and a
chmod() system call. To tell man(1) which section to display, specify the section number:
% man 1 chmod
This will display the manual page for the user command chmod(1). References to a particular section of the online manual are traditionally placed in parenthesis in written documentation, so chmod(1) refers to the user command and chmod(2) refers to the system call.
If the name of the manual page is unknown, use
man -k to search for keywords in the manual page descriptions:
% man -k mail
This command displays a list of commands that have the keyword "mail" in their descriptions. This is equivalent to using apropos(1).
To read the descriptions for all of the commands in /usr/bin, type:
% cd /usr/bin % man -f * | more
% cd /usr/bin % whatis * |more
3.12.1. GNU Info Files
FreeBSD includes several applications and utilities produced by the Free Software Foundation (FSF). In addition to manual pages, these programs may include hypertext documents called
info files. These can be viewed using info(1) or, if editors/emacs is installed, the info mode of emacs.
To use info(1), type:
For a brief introduction, type
h. For a quick command reference, type
